Airstream Dimensions Guide

Discovering your ideal Airstream means understanding which dimensions work best for your travel adventures. This detailed guide covers each model's specifications, organized from our most compact options to our largest available sizes. All measurements display Length (L) x Width (W) x Height (H) including air conditioning equipment.

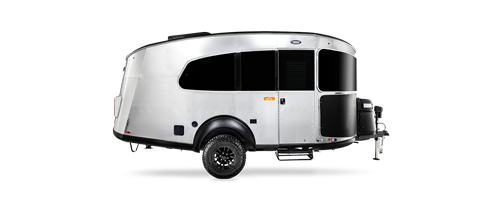

Airstream Basecamp

Basecamp 16: 16'2" L x 7' W x 8'9" H
Basecamp 20: 20'2" L x 7'9.5" W x 9'1.5" H

Basecamp models deliver wilderness access through thoughtful compact design. These manageable trailers pair easily with many trucks and SUVs already in your driveway. The 16-foot variant accommodates two adults comfortably, while the 20-foot option extends sleeping space for up to four campers. Each includes full cooking capabilities, wet bath facilities, and adaptable furniture that transforms for sleeping. Interior standing room reaches about 6'7" in the 20-foot configuration.

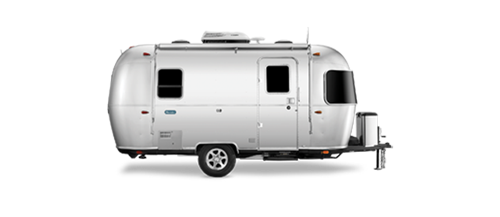

Airstream Bambi

16RB: 16'1" L x 8' W x 9'3" H
19CB: 19'1" L x 8' W x 9'3" H
20FB: 20'7" L x 8' W x 9'3" H
22FB: 21'11" L x 8' W x 9'3" H

Bambi represents timeless Airstream design in a travel-friendly format. All models share identical 8-foot width and 6'4" interior headroom, allowing easy movement throughout the space. The 16RB serves as our most compact standard trailer, complete with wet bath and smart storage solutions. The 19CB offers a clever corner bed configuration. The 20FB and 22FB provide expanded kitchen workspace, with the 22FB featuring a separate three-piece bathroom.

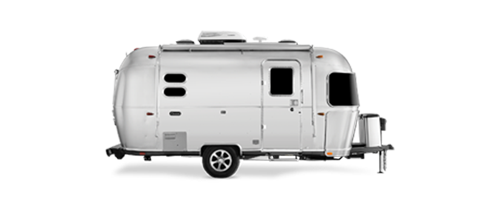

Airstream Caravel

16RB: 16'1" L x 8' W x 9'3" H
19CB: 19'1" L x 8' W x 9'3" H
20FB: 20'7" L x 8' W x 9'3" H
22FB: 21'11" L x 8' W x 9'3" H

Caravel shares exact dimensions with Bambi while featuring elevated interior touches. These trailers incorporate luxury materials and fixtures commonly found in our larger models. Floor plan options match Bambi's lineup (16RB, 19CB, 20FB, and 22FB) but showcase premium finishes and hardware throughout. Interior headroom stays at 6'4", while the 8-foot width creates abundant living space.

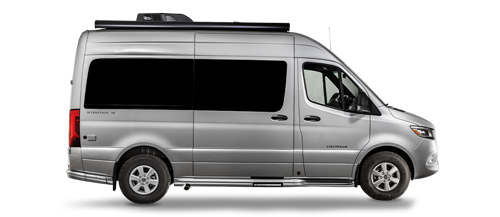

Airstream Interstate

19-Foot Models: 19' L x 6'10" W (approximate)
24-Foot Models: 24' L x 6'10" W (approximate)

Interstate touring coaches combine Mercedes-Benz engineering with Airstream construction quality. These Class B motorhomes use Sprinter van platforms available in 19-foot or 24-foot lengths. The compact 19-foot version handles regular parking spaces and city streets effortlessly. The extended 24-foot model offers additional living area while maintaining urban maneuverability. Both include wet bath, kitchen systems, and sleeping capacity for two people.

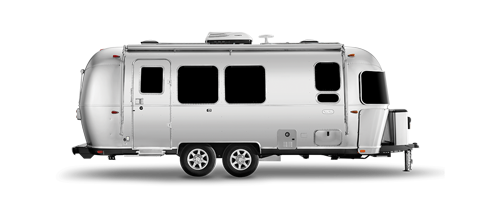

Airstream Flying Cloud

23FB: 23' L x 8' W x 9'7" H (approximate)
25FB: 25' L x 8'5.5" W x 9'8" H (approximate)
27FB: 27'9.5" L x 8'5.5" W x 9'8" H (approximate)
28RB: 28' L x 8'5.5" W x 9'8" H (approximate)
30-Foot Models: 30' L x 8'5.5" W x 9'8" H (approximate)

Flying Cloud provides the most comprehensive floor plan selection available. Beginning at 23 feet with a full-width rear bathroom, these tandem-axle trailers scale up to meet diverse camping needs. Width expands from 8 feet to 8'5.5" starting with 25-foot models, dramatically increasing interior room. The 25-foot and 27-foot sizes work perfectly for couples, while 28-foot and 30-foot versions accommodate families well. Unique configurations include the 30FB Bunk (sleeping up to 8 people) and 30FB Office (with built-in workspace).

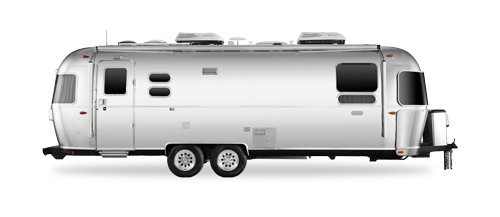

Airstream Globetrotter

23FB: 23' L x 8' W x 9'7" H (approximate)
25FB: 25' L x 8'5.5" W x 9'8" H (approximate)
27FB: 27'9.5" L x 8'5.5" W x 9'8" H (approximate)
30RB: 30' L x 8'5.5" W x 9'8" H (approximate)

Globetrotter combines European aesthetic principles with proven Airstream build standards. The 23-foot model includes a complete rear bathroom and queen bed within 8-foot width parameters. Starting at 25 feet, the wider 8'5.5" exterior creates significantly more interior volume. The 27FB (measuring closer to 28 feet outside) and 30RB models provide additional capacity, with the 30RB featuring 22 windows and a distinctive curved lounge setup.

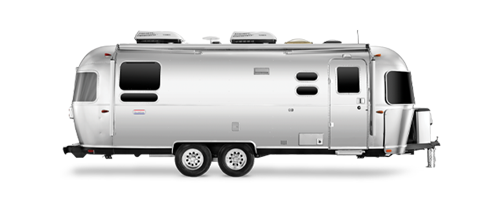

Airstream International

23CB/23FB: 23' L x 8' W x 9'7" H (approximate)
25RB/25FB: 25' L x 8'5.5" W x 9'8" H (approximate)
27FB: 27'9.5" L x 8'5.5" W x 9'8" H (approximate)
28RB: 28' L x 8'5.5" W x 9'8" H (approximate)
30RB: 30' L x 8'5.5" W x 9'8" H (approximate)

International features modern styling inspired by coastal environments. Layout choices span 23 to 30 feet, offering similar size variety to Flying Cloud. The Coastal Cove interior package delivers serene colors and solid surface countertops throughout all arrangements. Similar to Flying Cloud and Globetrotter, width increases from 8 feet to 8'5.5" starting at the 25-foot size and larger.

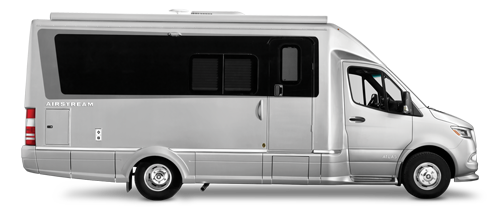

Airstream Atlas

Atlas Murphy Suite: 24' L x 7'4" W (approximate interior width)

Atlas defines luxury within our touring coach lineup. This 24-foot Class B+ motorhome incorporates a power slide-out that expands interior space when stopped. Built on a Mercedes-Benz Sprinter 4500 chassis, it features a complete three-piece bathroom covering the full rear, Murphy bed configuration, and home-quality finishes throughout. Despite luxury amenities, it maintains everyday driving practicality.

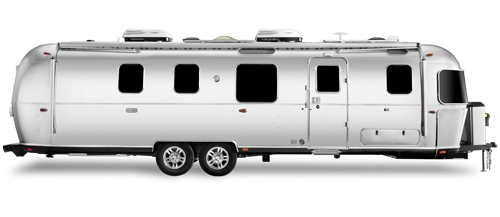

Airstream Classic

28RB: 28' L x 8'5.5" W x 9'8" H (approximate)
30RB: 30' L x 8'5.5" W x 9'8" H (approximate)
33FB: 33' L x 8'5.5" W x 9'8" H (approximate)

Classic stands as our premier travel trailer series, showcasing the most advanced features in our lineup. The 28-foot model creates dedicated areas for meal preparation, dining, relaxation, and sleeping. The 30-foot variant adds enhanced storage and bathroom facilities. The 33-foot Classic reaches the peak of our travel trailer offerings, featuring a home-style bathroom spanning the complete rear and extensive overhead storage. All models employ the wider 8'5.5" body for maximum interior space.

Dimension Categories Explained

Single-Axle (16'-22'): Standard 8-foot width, easier towing characteristics, accommodates more campgrounds, lighter weight

Dual-Axle (23'-33'): 8-foot width at 23', 8'5.5" width at 25' and longer, better towing stability, increased interior area, enhanced storage capacity

Touring Coaches (19'-24'): Van-based widths (roughly 6'10"-7'4"), complete motorhomes, no separate tow vehicle required, Mercedes-Benz power

Height Information: Most travel trailers measure approximately 9'3" to 9'8" tall with air conditioning units. Interior headroom typically ranges 6'3" to 6'5", allowing comfortable standing for most adults.

Width Impact: The step up from 8-foot to 8'5.5" width in larger models creates substantially more interior space and makes a meaningful difference for longer trips or multiple occupants.

Keep in mind that interior dimensions vary from exterior measurements. Each model maximizes living space within its structure, so we encourage visiting our Gainesville dealership to walk through different sizes and discover which matches your camping style.
